Stop Using delay(): Master FreeRTOS for Professional Arduino Multitasking

If you write delay(1000) in your code, you have frozen the entire universe for one second. During that second, your robot cannot see the cliff. Your thermostat cannot read the fire alarm. Your server cannot reply to the client. This is called Blocking Code, and it is the enemy of professional engineering.

Up until today, we used tricks like millis() timestamps to perform “Multitasking”. But what if I told you there is a way to write two separate loop() functions and have them run at the same time? Welcome to FreeRTOS (Real-Time Operating System).

The Problem: The Single-Threaded Trap

A microcontroller has one core (CPU). It can only do one thing at a time. The standard Arduino “Superloop” looks like this:

void loop() {
  readSensor(); // Takes 50ms
  updateDisplay(); // Takes 200ms
  checkWiFi(); // Takes 10ms
}

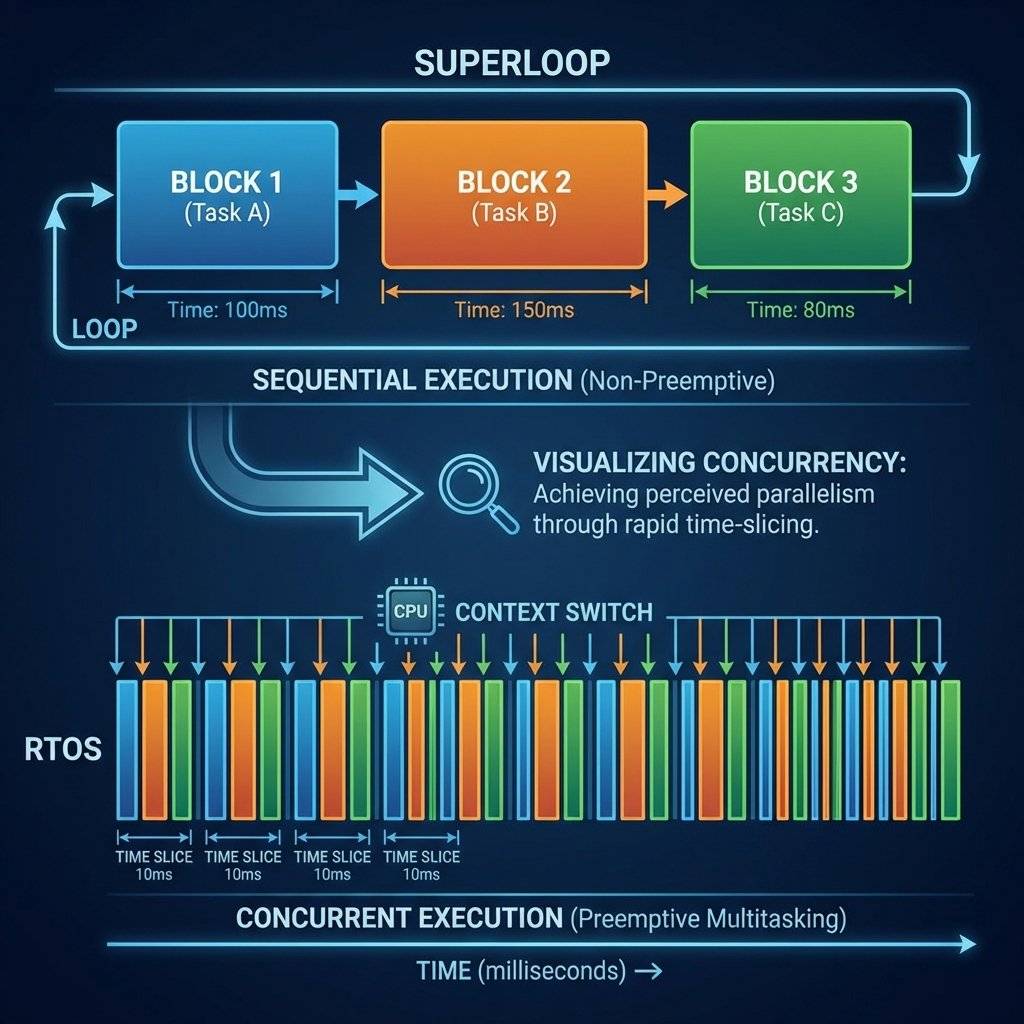

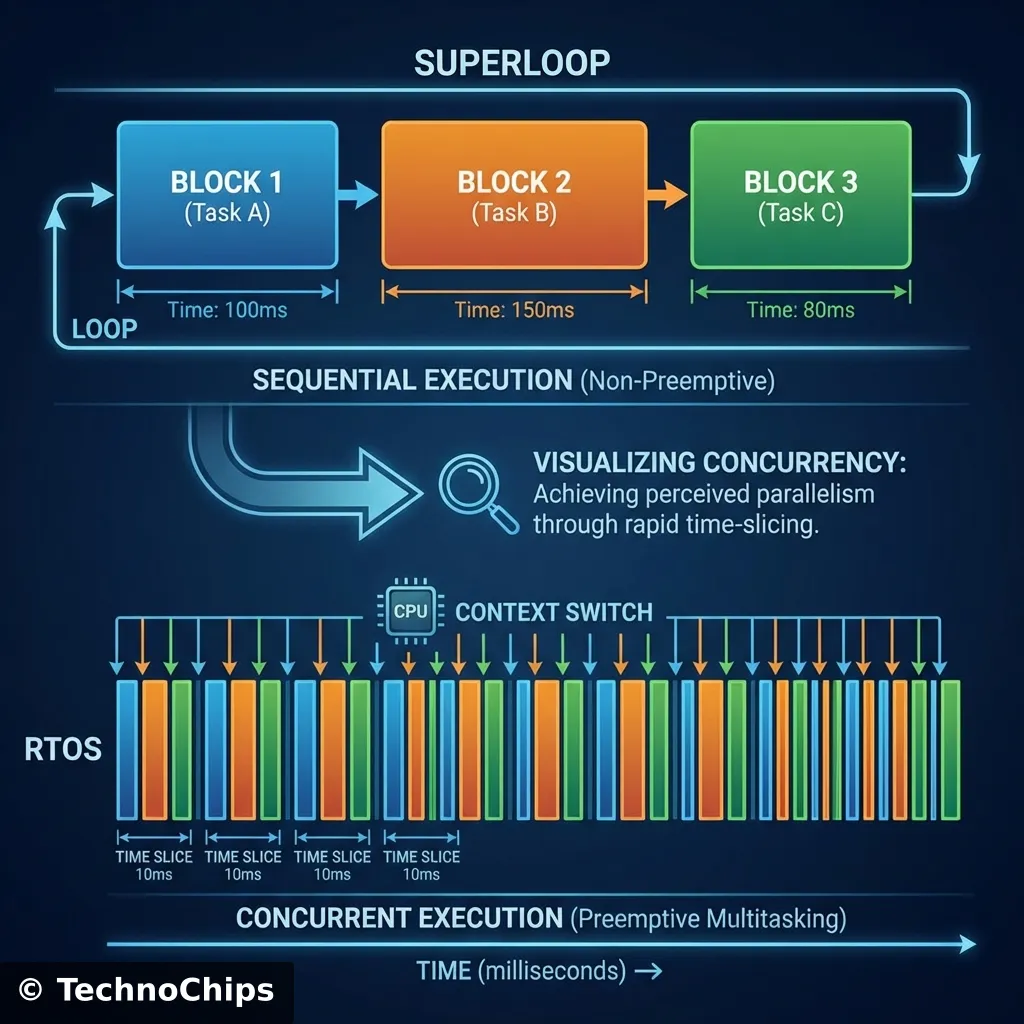

If updateDisplay() hangs for 5 seconds because of a bad I2C wire, your checkWiFi() function freezes. Your device goes offline. In a Real-Time Operating System, the Scheduler saves us. It slices time into tiny chunks (ticks) and swaps tasks so fast (1000 times a second) that it looks like they are running in parallel.

---

Core Concept 1: The Task (Your New loop())

In FreeRTOS, we don’t use void loop(). We create Tasks. A Task is a C function that runs forever in its own infinite loop.

void TaskBlink(void *pvParameters) {
  pinMode(LED_BUILTIN, OUTPUT);
  while (1) { // Infinite Loop
    digitalWrite(LED_BUILTIN, HIGH);
    vTaskDelay(1000 / portTICK_PERIOD_MS); // Non-blocking delay
    digitalWrite(LED_BUILTIN, LOW);
    vTaskDelay(1000 / portTICK_PERIOD_MS);
  }
}

The Magic of vTaskDelay()

Unlike delay(), which forces the CPU to sit and spin, vTaskDelay() tells the Scheduler: “I am going to sleep for 1000ms. Go do something else.” The Scheduler instantly switches to the next highest priority task.

---

Core Concept 2: Priorities (The VIP Lane)

Not all tasks are equal.

• Safety Task (Emergency Stop): Priority 10. Must run NOW.
• WiFi Task (Keep Alive): Priority 5.
• LED Blink Task (Aesthetics): Priority 1.

If a Priority 10 task wakes up, the Scheduler interrupts the Priority 1 task instantly (Preemption). The LED waits. The Emergency Stop runs. This guarantees Determinism. We know exactly how long higher priority tasks will wait (almost zero).

---

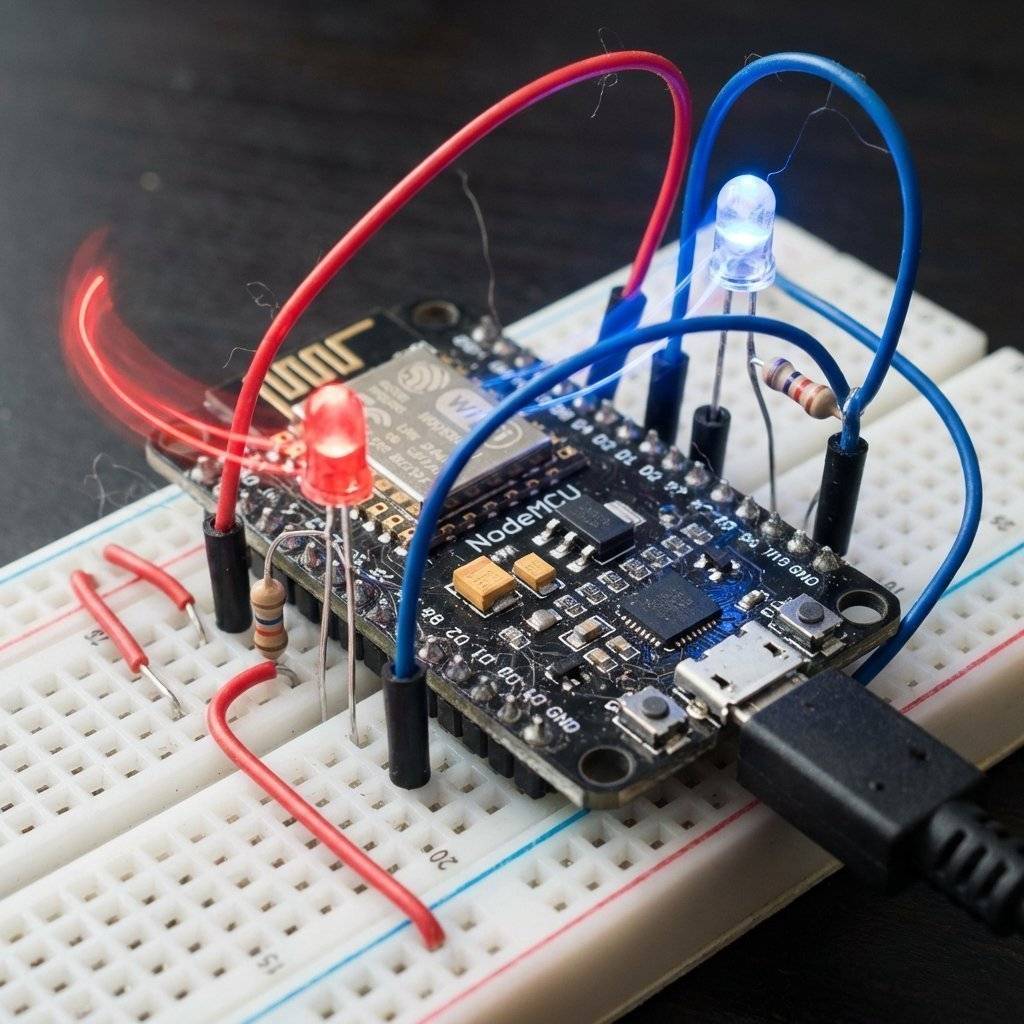

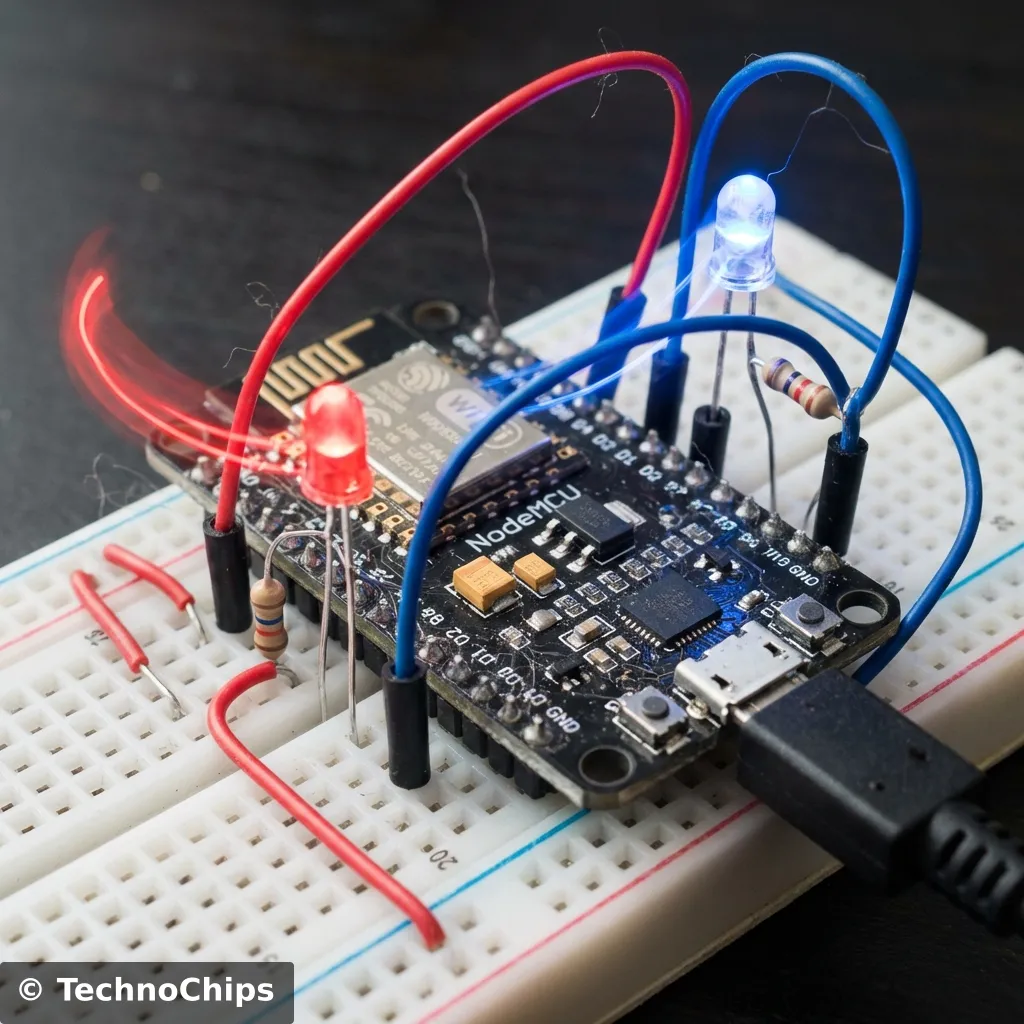

Hands-On: The “Dual Core” ESP8266

(Note: ESP8266 is single core, but FreeRTOS simulates threads beautifully).

We will create two tasks that would be impossible with delay():

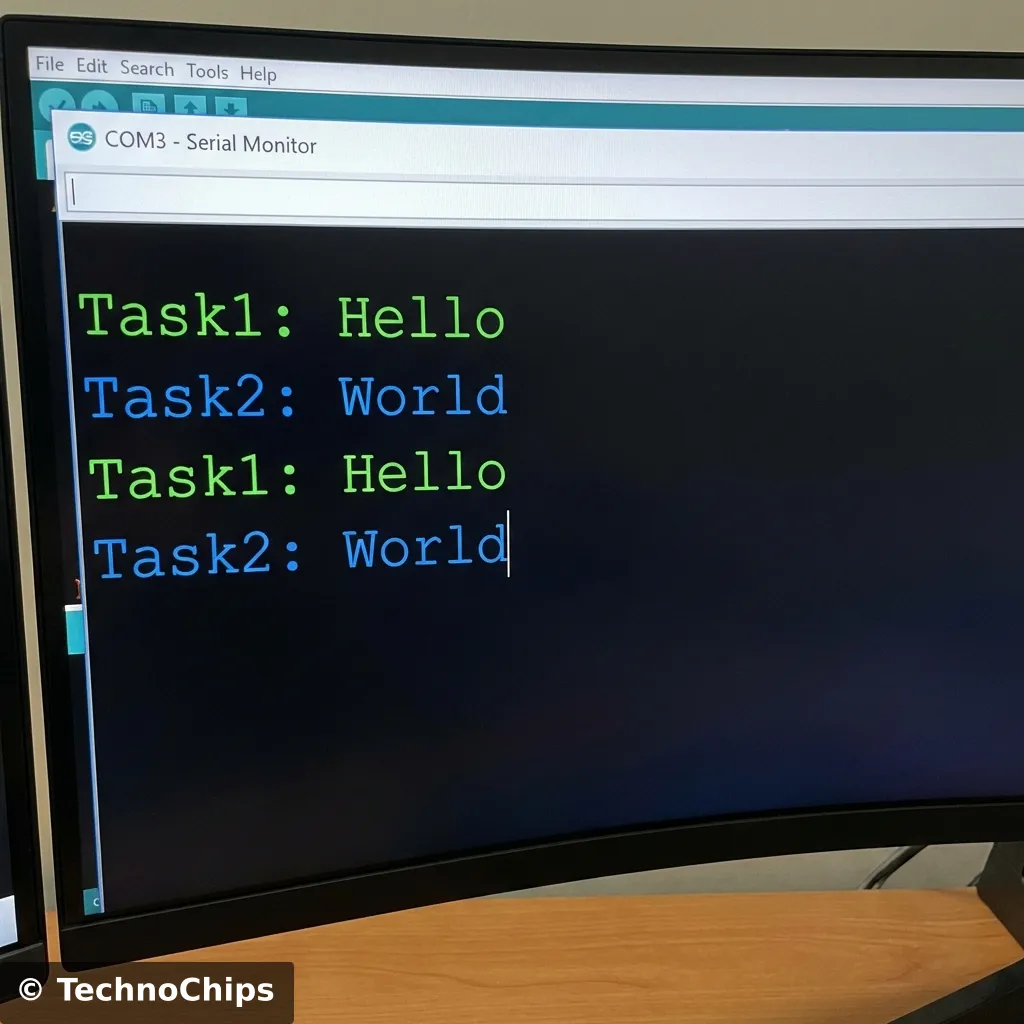

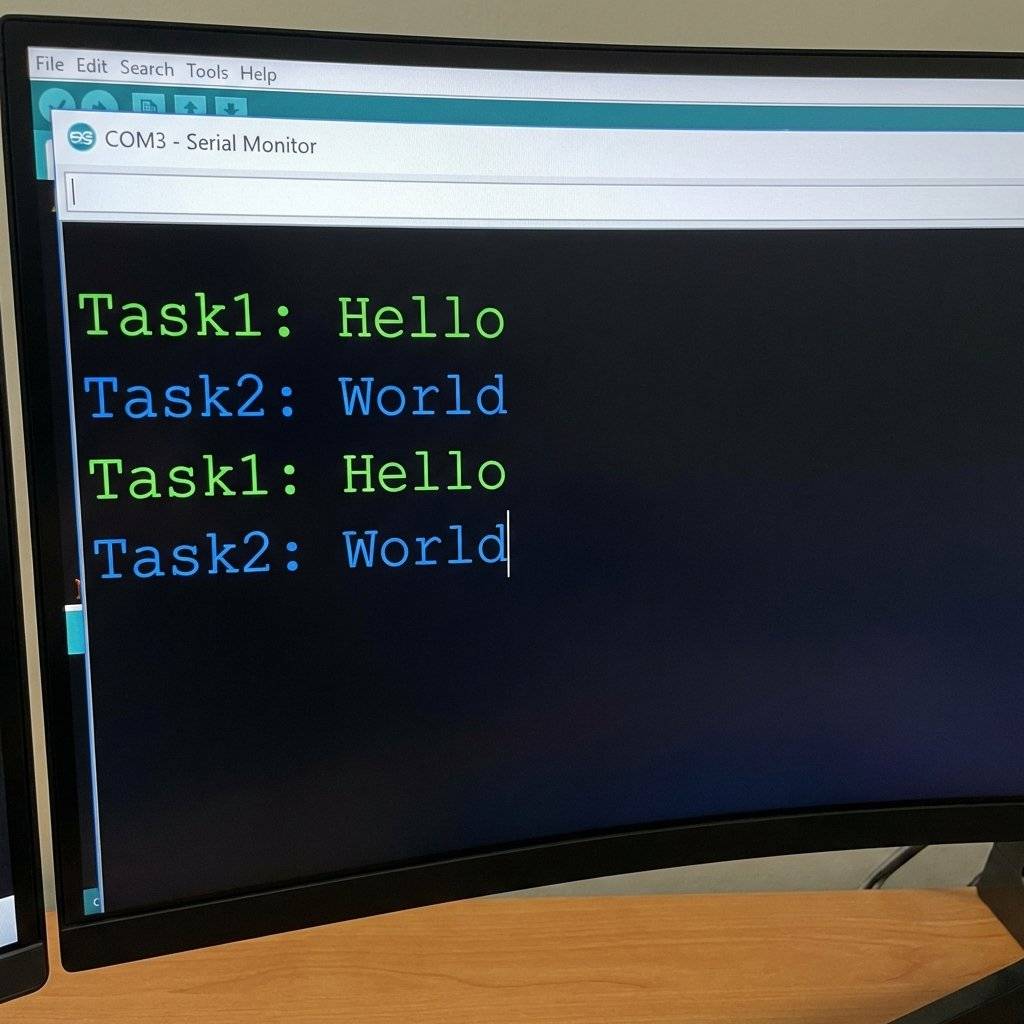

1. Task 1: Print “Hello” every 500ms.
2. Task 2: Print “World” every 300ms.

Because 500 and 300 are coprime (mostly), they will drift apart. With delay(), the total time would be 800ms per loop. With FreeRTOS, they run independently.

The Code:

#include <Arduino.h>

// Define Task Handles
TaskHandle_t Task1;
TaskHandle_t Task2;

void Task1Code(void * pvParameters) {
  for(;;) {
    Serial.println("Task 1: Hello");
    vTaskDelay(500 / portTICK_PERIOD_MS);
  }
}

void Task2Code(void * pvParameters) {
  for(;;) {
    Serial.println("Task 2: World");
    vTaskDelay(300 / portTICK_PERIOD_MS);
  }
}

void setup() {
  Serial.begin(115200);

  // Create Task 1
  xTaskCreatePinnedToCore(
    Task1Code,   // Function
    "Task1",     // Name
    10000,       // Stack Size (Bytes)
    NULL,        // Parameters
    1,           // Priority
    &Task1,      // Handle
    0            // Core ID (0 for ESP8266)
  );

  // Create Task 2
  xTaskCreatePinnedToCore(
    Task2Code, "Task2", 10000, NULL, 1, &Task2, 0
  );
}

### Deep Dive: Understanding `xTaskCreate` Parameters

The `xTaskCreatePinnedToCore` function is a monster. Let's dissect it:
1.  **`TaskFunction_t`**: The name of the function to run (e.g., `Task1Code`). It must return `void` and take `void *` parameters.
2.  **`const char *`**: A human-readable name ("Task1"). purely for debugging with `vTaskList`.
3.  **`uint32_t`**: The Stack Size in **Bytes** (on ESP32/ESP8266).
    *   *Warning:* On standard Arduino/AVR FreeRTOS, this is **Words** (2 bytes). This confusion causes 50% of all difficult bugs.
4.  **`void *`**: Parameters to pass to the task. Usually `NULL`, but can be a pointer to a struct if you want to reuse the same function for 10 identical tasks.
5.  **`UBaseType_t`**: Priority. 0 is Lowest. 25 is Highest (configMAX_PRIORITIES).
    *   *Tip:* Always keep `loop()` (Priority 1) lower than your critical tasks.
6.  **`TaskHandle_t *`**: A pointer to store the "ID" of the task. You need this handle if you want to `vTaskDelete()` or suspend it later.
7.  **`BaseType_t`**: Core ID.
    *   `0`: Protocol Core (WiFi/Bluetooth).
    *   `1`: Application Core (Your Code).
    *   *ESP8266 Note:* It only has Core 0, so this argument is ignored or must be 0.

void loop() {
  // Empty! The Scheduler runs everything.
}

---

Core Concept 3: Queues (Passing Data Safely)

The Trap: You have a Sensor Task reading temperature. You have a WiFi Task sending it. Why not just use a global variable float temp;? RACE CONDITION! What if the Sensor Task is writing 25.4 (4 bytes) and gets interrupted halfway? The WiFi task reads 25.0 (corrupted info).

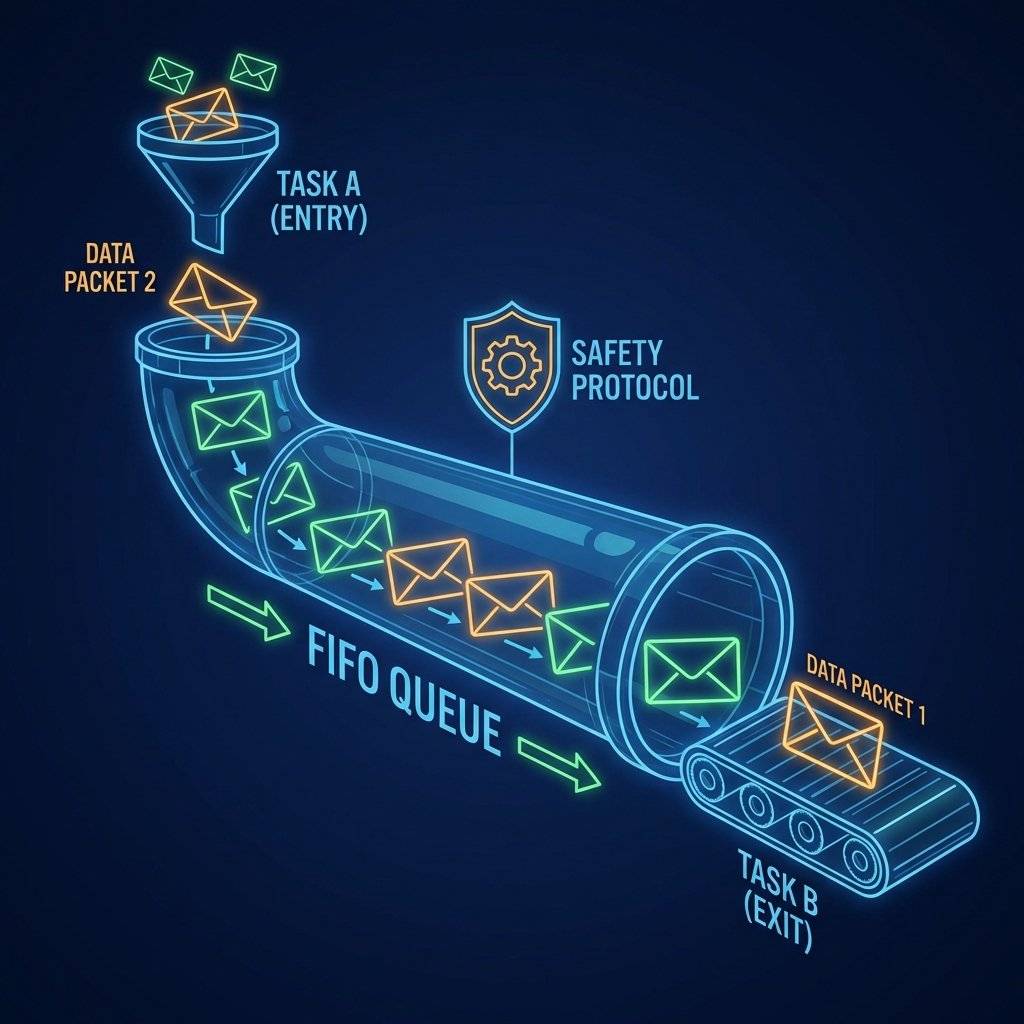

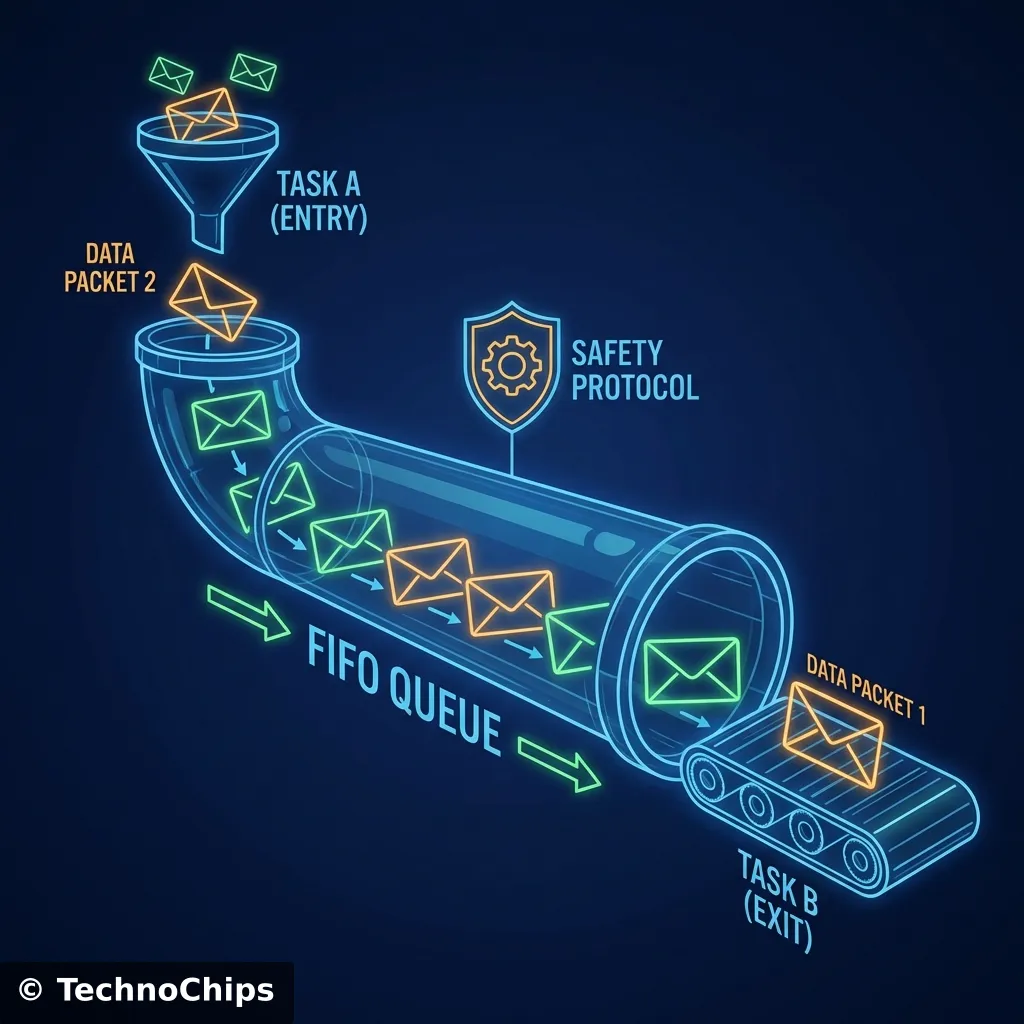

The Solution: Queues. A Queue is a thread-safe pipe. One task pushes data in one end. The other pops it out. If the queue is empty, the WiFi task sleeps until data arrives.

QueueHandle_t queue;

void SensorTask(void * parameter) {
  int data = 0;
  for(;;) {
    data = analogRead(A0);
    xQueueSend(queue, &data, portMAX_DELAY);
    vTaskDelay(100);
  }
}

void WiFiTask(void * parameter) {
  int receivedData;
  for(;;) {
    if (xQueueReceive(queue, &receivedData, portMAX_DELAY)) {
      Serial.println(receivedData); // Safe!
    }
  }
}

---

Core Concept 4: The Mutex (The Bathroom Key)

Sometimes two tasks need to use the SAME resource (e.g., the Serial Port). If Task 1 prints “Hello” and Task 2 interrupts it to print “World”, you get messages like: HelWorldlo.

The Solution: Mutex (Mutual Exclusion). Think of it like a bathroom key.

1. Task 1 takes the key (Lock).
2. Task 1 uses the Serial Port.
3. Task 2 tries to take the key, finds it missing, and waits in line.
4. Task 1 returns the key (Unlock).
5. Task 2 grabs the key and runs.

SemaphoreHandle_t xMutex;

void PrintTask(void * param) {
  // Try to take the key
  if (xSemaphoreTake(xMutex, portMAX_DELAY)) {
    Serial.println("I have the talking conch!");
    xSemaphoreGive(xMutex); // Return the key
  }
}

Advanced: The Race Condition Visualized

Imagine Task A reads a variable counter = 10. Context Switch occurs. Task B reads counter = 10. Adds 1. Saves 11. Context Switch back to A. Task A adds 1 to its old copy (10). Saves 11. Result: The counter should be 12, but it is 11. Mutexes prevent this by forcing Task B to wait until Task A is completely done.

---

RTOS vs Interrupts (ISR)

You might ask: “Why not just use attachInterrupt()?”

• ISR (Interrupt Service Routine): Runs immediately when a pin changes. Blocks everything. You cannot usage delay, Serial.print, or I2C inside an ISR. It must be microseconds long.
• RTOS Task: Runs when the scheduler says so. Can take as long as it wants. Can print, wait, and compute.
• The Bridge: Use an ISR to detect the button press, then send a Semaphore to wake up a Task. This keeps the ISR short and the logic heavy.

// The Bridge Pattern
void IRAM_ATTR isr() {
  xSemaphoreGiveFromISR(xSemaphore, NULL); // Wake up the task
}

---

Core Concept 5: Software Timers

Sometimes you don’t need a full Task just to blink an LED. You need a Timer. FreeRTOS has a “Daemon Task” that manages timers.

• One-Shot Timer: Runs once after 5 seconds (e.g., Turn off backlight).
• Auto-Reload Timer: Runs every 100ms forever (e.g., Blink LED).

Why use Timers vs Tasks? Timers use less RAM. They don’t have their own huge stack. They piggyback on the system stack. Warning: Don’t do heavy work in a timer callback, or you block all other timers.

---

The Dangers of RTOS (What Can Go Wrong)

With great power comes great debugging nightmares.

1. Stack Overflow

In setup(), we allow 10kb of RAM (10000) for each task. If you declare a massive array int big[5000]; inside that task, you exceed the limit. The ESP8266 will crash with a “Guru Meditation Error”.

• Fix: Use global variables or increase stack size.
• Detection: Use uxTaskGetStackHighWaterMark(NULL) inside the task loop. It returns the minimum free bytes ever left in the stack. If it gets near 0, you are in danger.

void Task1Code(void * pvParameters) {
  for(;;) {
    UBaseType_t uxHighWaterMark = uxTaskGetStackHighWaterMark(NULL);
    Serial.print("Stack Space Left: ");
    Serial.println(uxHighWaterMark);
    vTaskDelay(1000);
  }
}

2. Starvation

If you have a Priority 2 task that never sleeps (no vTaskDelay), the Priority 1 tasks will never run. They starve to death.

• Rule: Every high-priority task MUST have a delay or a blocking wait (like QueueReceive).

3. Deadlock (The Mexican Standoff)

Task A has Key 1 and wants Key 2. Task B has Key 2 and wants Key 1. Both wait forever. The system freezes.

• Fix: Always take mutexes in the same order.

4. Priority Inversion (The Mars Pathfinder Bug)

This actually happened on Mars.

• Low Priority Task holds a Mutex (Weather Data).
• High Priority Task needs the Mutex (Bus Control).
• Medium Priority Task (Communications) interrupts the Low Task.
• Result: The Low Task never finishes using the Mutex. The High Task waits forever. The Medium Task runs wild.
• Fix: Priority Inheritance. The Low Task is temporarily promoted to High Priority to finish its job and release the key.

---

Debugging: Viewing the Invisible

Since tasks switch invisibly, Serial.print creates a mess.

1. GPIO Toggling: Flip a pin HIGH when entering a task, LOW when leaving. Hook up a Logic Analyzer (or Oscilloscope). You will see the exact timing of the scheduler.
2. vTaskList(): A built-in function that prints a table of all tasks, their state (Running, Blocked), and their stack usage.

char ptrTaskList[250];
vTaskList(ptrTaskList);
Serial.println(ptrTaskList);

---

Why Use FreeRTOS?

1. Modularity: You can write the “WiFi Code” in one file and “Sensor Code” in another. They don’t need to know about each other.
2. Responsiveness: Buttons feel “snappy” because the Button Task checks them every 1ms, even if the Display Task is slow.
3. Library Compatibility: Many advanced libraries (like AWS IoT) require FreeRTOS to handle network keep-alives in the background.

Glossary: Speak Like a Systems Architect

• Scheduler: The “God Mode” code that decides which task runs when.

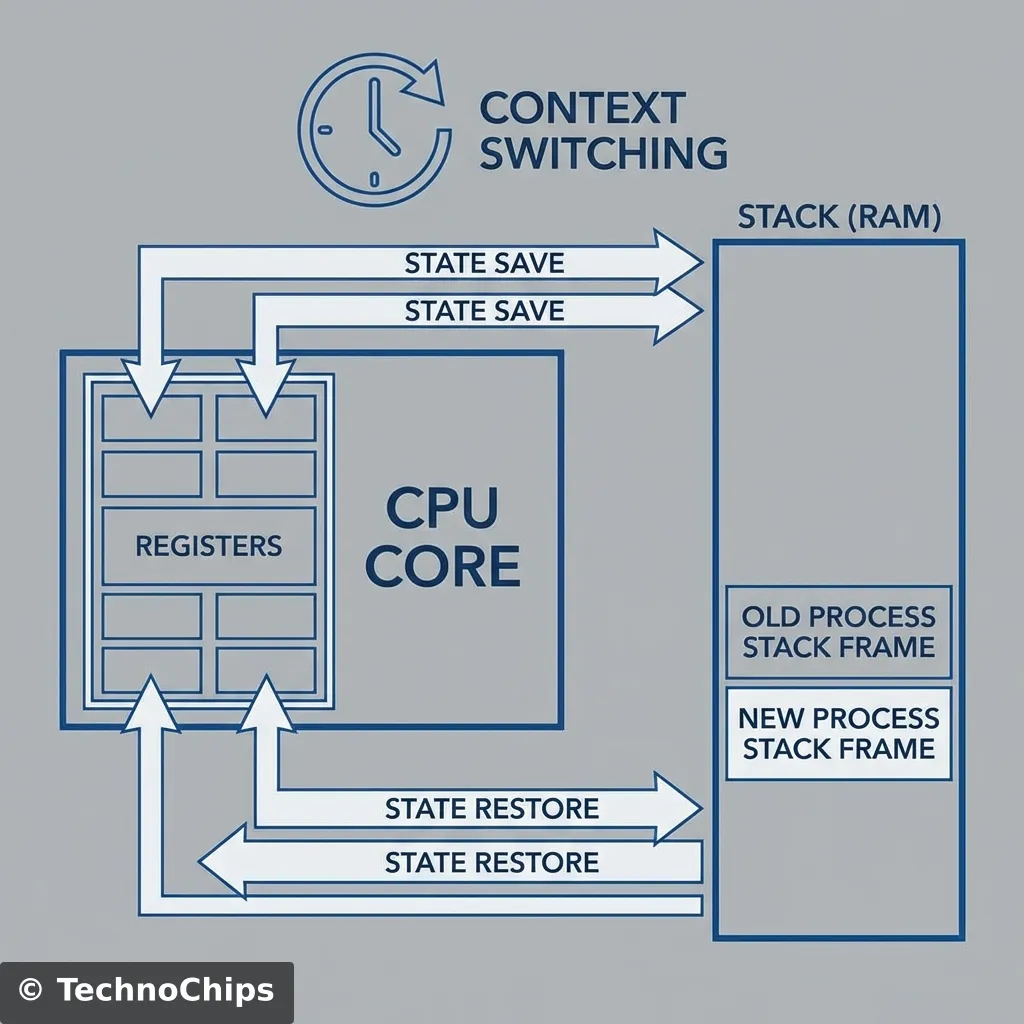

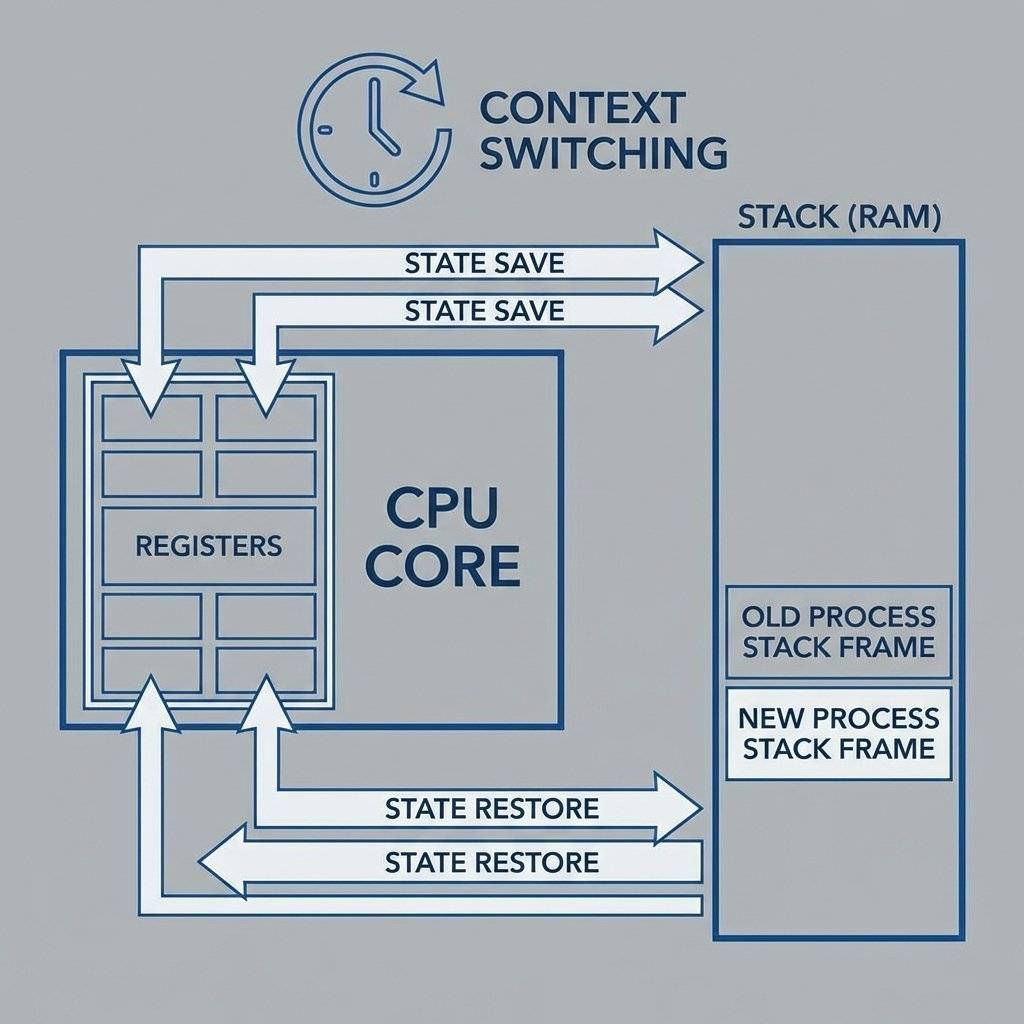

• Context Switch: The act of saving the CPU registers of one task and loading another. (The Overhead).
• Tick: The heartbeat of the RTOS (usually 1ms).
• Semaphore: A flag used for signaling (like a traffic light).
• Mutex: A Binary Semaphore used for locking resources (like a key).
• Preemption: The ability of the scheduler to forcibly pause a running task.

---

Final Project: The “Multitasking Hub”

Combine everything.

• Task 1 (Priority 2): Read DHT11 Temperature (Every 2s). Send to Queue.
• Task 2 (Priority 1): Read Queue. Update OLED Display.
• Task 3 (Priority 3): Watch Button. If pressed, trigger Emergency LED.

If the DHT11 sensor hangs (it is slow), the Button still works instantly. That is the power of RTOS.
